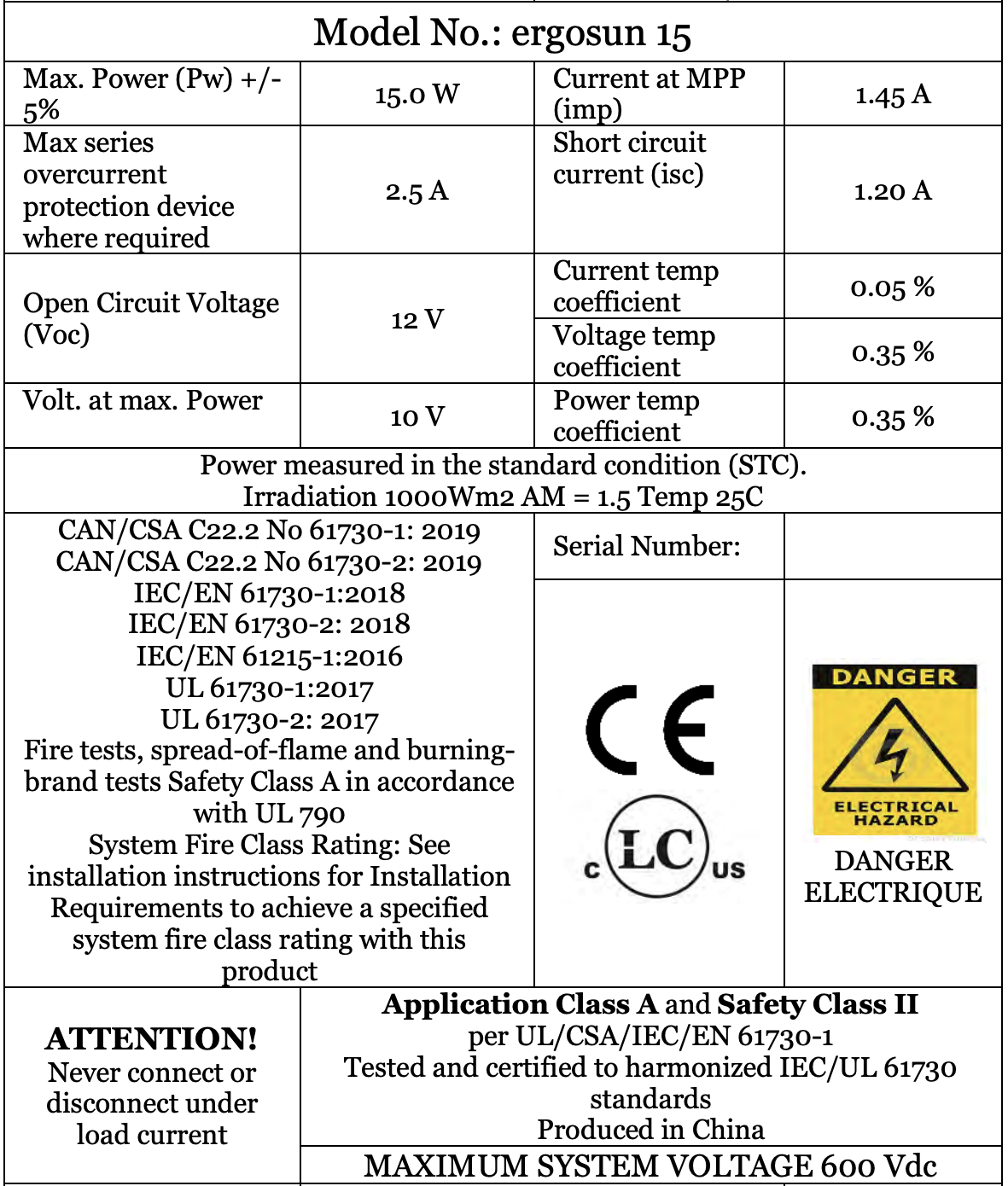

Active Roof Tile Data
Module
| Dimensions | 11.73″ x13.19″ |
| Substrate | Concrete / Clay |
| Cells/ module | 20 |
| Tiles / square metre | 10 |
| Thickness | 3mm |
Power
| Per tile | 10 V @ 1.5 A |
| Protection | Bypass Diode / Fused String |
| Temperature | 77 F (25 C) |
| VOC(V) | 12 V |
| VMP (V) | 10V |
| ISC(A) | 1.55 A |
| IMP (A) | 1.45 A |
| PMP (W) | 15 W |
| EEF %6 | 19.22 |
| FF % | .7617 |
| Current Temp Coefficient % (C) | 05% |
| Open Circuit Volt Temp Coeffcient % (C) | 0.35% |
| Output Temp Coefficient % (C) | 0.45% |
Connections
| Tiles in series | 2x MC4 connectors |
| System design voltage | 600 VDC max |
