Solar Roof Tile Testing
Solar Roof Tiles meet or exceed all IBC International Building Codes & IEC International Energy Codes & Certifications.
Solar Roof Tile Certification & Listings are pending in North America as follows;
| Fire ASTM E 108 UL 790 |
Class A or C Burning brand, intermittent flame, and spread of flame. |
| UL 2218 Impact | Class 4 Two-inch steel ball weighing 1.2 lbs dropped from 20 feet |
| ASTM D3161 same as UL 997 Wind Uplift UL 580 |
Tolerated – speed @ 110mph |
| Accelerated Weathering ASTM 4798 | Indistinguishable color change. No appreciable change in tensile strength. |
| Freeze-thaw ICC-ES Acceptance Criteria ACO7 section 4.9 | No indication of spalling, crazing, cracking, or other deleterious surface changes. |
| ICC-ES AC07 Section 4.4 Loads |
Tolerated an applied load of 200 lbs. |
| ASTM D 471 Water Absorption | Virtually no water absorption. |
| ASTM D 3462 Nail Pull Through | 140 lbs. Resistance at 32 F 168 lbs. Resistance at 72 F |
| ASTM G21 Fungus (algae) | Does not propagate fungus growth |
| ASTM D 638 Tensile Strength |
No meaningful reduction of strength. |
| TAS-100 | The system tolerates 110 MPH blowing simulated rainwater |
| ASTM D6083 & D6694. | Accelerated Aging /Sustainability 50 plus yrs. |
| UNI 9177 {best} Fire Class A / rating 1 |
| Hail – IEC 61215, Class 3 = 1.75″ diameter, 44-gram ice ball, @ 60 mph impact resistance |
| Wind Load DIN 1055-4 – 200 mph |
| IEC EN 61730, – Harmonized. [not UL listed] |
| IEC EN 61215 weather testing including temperature cycling |
| IEC EN 61701 – Salt corrosion tested |
| CEN/TR 15601 – wind driven rain tested |
| CE Certificate – EU safety standards and efficiency |
Solar Roof Tile Data
| Cell Material | Monocrystalline Silicon |
| Cell Size | 156 x 156 mm |
| Module Dimensions | 420 x 580 mm |
| Weight | approx.4,125 kg |
| Weight per m² | approx. 14 kg |
| Cooling | Single Module Cooling |
| Connectors | MC 4 Compatible |
| Cables | 2x approx. 50 cm, 2,5mm² |
| Bypass Diode | 1 Diode/tile |
| Thickness of Glass | 4 mm, Prismatic |
| Mechanical Resilience | 8500 Pa (approx. 850kg/m²) |
| Backing | Laminate UV- and Weatherproof |
| Effective cell angle range | 3° – 60° |
*Ideal roof angle/pitch:
The ideal angle for solar pv installations ranges between 20° and 30 ° and should ideally match the latitude angle of the location of the property.
Electrical data:
| Nominal Power / Tile | 29.58 Wp |
| Power per m² | 147.9 Wp |
| Efficiency | 20.6 – 21.24 % |
| Tolerance/ STC | +3% |
| Max. System voltage | 1000 V DC |
| Nominal Voltage | 3.48 V |
| Nominal Current | 9,6 A |
| Voltage without load (VOC) | 3.98 V |
| Short Cut Current (ISC) | 9,6 A |
| Operation temperature | -40 ºC to +85 ºC |
| Estimated lifetime | 40 Years with 80% of nominal power |
TEMPERATURE COEFFICIANTS

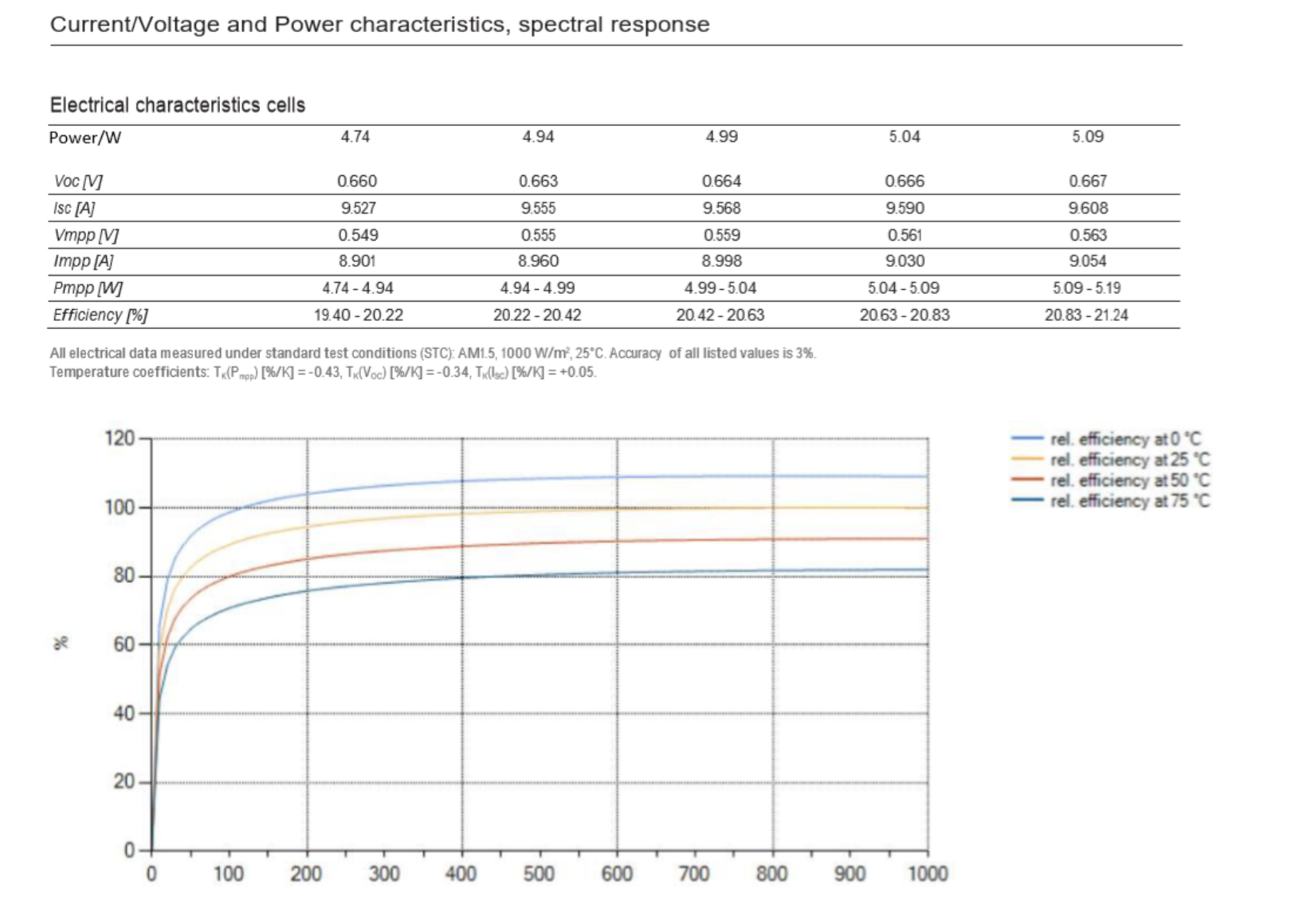

All electrical data measured under standard test conditions (STC): AM1.5, 1000 W/m2, 25°C. Accuracy of all listed values is 3%. Temperature coefficients: TK(Pmpp) [%/K] = -0.43, TK(VOC) [%/K] = -0.34, TK(ISC) [%/K] = +0.05. STANDARD TESTING CONDITIONS (STC) E=1000W/m² AM=1,5 T=25ºC
Fire Class:
| Front | Solar-module Glass, Tempered, Prismatic |
| TPT-Foil (Rear) | PYE/PET (Polyethylene Terephthalate) |
| Specials | Storm Proof Clips |
| Certificate-TPT-Foil | Tested reg. ANSI/UL94 (Tests for Flammability of Plastic Materials for Parts in Devices and Appliances) |
IEC60695-2-12/13 + IEC60695-10-2, IEC60112, ISO75-2, ISO527-2, ISO178, ISO179-2, ISO180
With shade light *These values are typical average measurements of historical production data. Future production data can be different. Technical changings and errors reserved.
